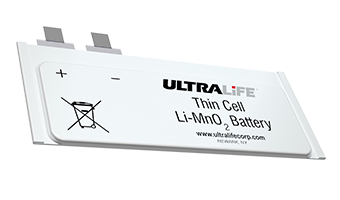

Thin Cell® (Li-MnO2) Batteries
Power next-gen devices with ultra-slim 3.0V cells as thin as 1.1mm, offering higher energy density and superior high-rate performance than coin cells. They operate from -20°C to +60°C without swelling and are certified for global safety and transport.
Built by Engineers, For Engineers
At Ultralife, we specialize in custom and standard battery packs designed to meet your unique needs. Our strength lies in deep technical expertise, collaborative problem solving, and our ability to deliver application-specific energy solutions—no matter the complexity.
The Power Source for Wireless Connected Devices
Ultralife’s Thin Cell® battery combines ultra-slim Li-MnO₂ technology with expert engineering support to help OEMs, ODMs, and design teams bring thinner, smarter devices to life. From concept to production, we offer global delivery and tailored solutions that accelerate your path to market.
Ideal for a Wide Range of Applications
Whether for consumer tech or professional equipment, Thin Cell® is the perfect solution where compact, high-performance, non-rechargeable power is essential:
- Smart Security Cards
- Asset Tracking Tags
- Toll Pass Tags
- Bank Theft Tracking Systems
- Electronic Record Tracking
- Medical Devices
- Drug Delivery Systems
- RFID and IoT Modules
Features and Benefits
- High Energy Density
~500Wh/l and 400Wh/Kg vs. 300Wh/l and 260Wh/Kg in typical coin cells — enables smaller, lighter devices. - Excellent Storage Life
Retains >98% capacity after 1 year at room temp; no passivation issues. - Stable Voltage Output
Operates between 3.3V–1.5V — ideal for low-voltage electronics. - Ultra-Slim Profile
As thin as 1.1mm; perfect for compact devices like ID tags and smart cards. No swelling during use/storage.
- High Rate Capability
Low-resistance design supports high bursts of energy — great for RF transmitters. - Wide Temperature Range
Operates from -20°C to +60°C — functions even when other batteries freeze. - Standard & Custom Sizes
Custom cell sizes can be designed to fit within the following dimensions:- Length: 20–305mm
- Width: 20mm-205mm
- Thickness: 1.1mm-6mm
Certified, Safe & Ready to Ship
All Thin Cells® are certified to UL 1642 and UN 38.3, with select models meeting IEC 60086-4. They perform in temperatures from -20°C to +60°C and won’t swell during use or storage.
Available in multiple sizes or fully customizable for your application needs.
Explore What Thin Cell® Can Do
Not ready to connect? Browse our brochure, whitepaper, or infographic to learn more on your own.
